泰国晚始新世Anthracokeryx thailandicus Ducrocq, 1999(石炭兽科,小丘齿兽亚科)的分类修订

DUCROCQ Stéphane

Taxonomic revision of Anthracokeryx thailandicus Ducrocq, 1999 (Anthracotheriidae, Microbunodontinae) from the Upper Eocene of Thailand

DUCROCQ Stéphane

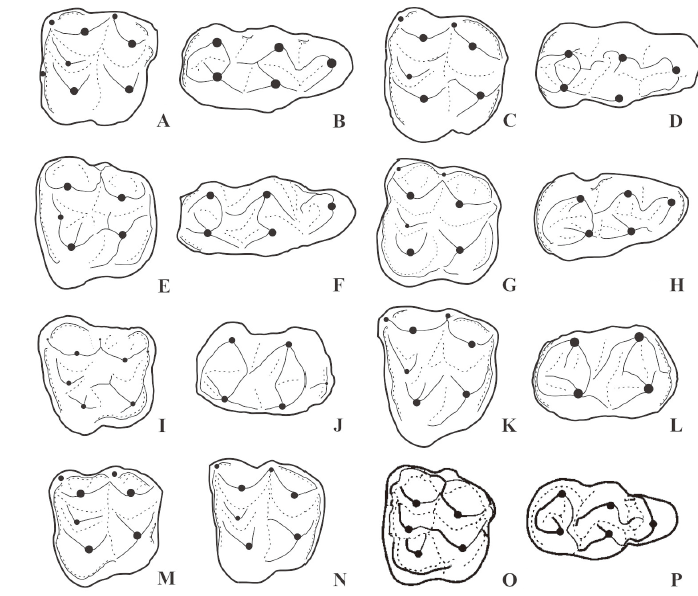

Fig. 2 Interpretative drawings of upper and lower molars (m3) of the microbunodontine taxa A-B. Geniokeryx thailandicus: A. left upper molar TF 2638, B. right m3 TF 2656; C-D. Anthracokeryx birmanicus: C. left upper molar Pkg-169, D. right m3 B-605; E-F. A. tenuis: E. left upper molar B-756,F. right m3 B-755; G-H. A. gungkangensis: G. right upper molar (inverted) IVPP V 4950, H. left m3 (inverted) V 4950; I-J. A. naduongensis: I. left upper molar (inverted) ND 2012-02-15-1, J. left m1 (inverted) ND 2012-02-16-2; K-L. A. sinensis: K. left upper molar IVPP V 63321, L. left m2 (inverted) V 63320; M. A. kwangsiensis, left upper molar IVPP V 4951; N. A. dawsoni, left upper molar V 7915; O-P. Microbunodon minimum: O. left upper molar LM1967MA300, P. right m3 LM1970MA57. Not to scale
