古脊椎动物学报 ›› 2022, Vol. 60 ›› Issue (4): 249-270.DOI: 10.19615/j.cnki.2096-9899.220524
• • 下一篇
收稿日期:
2022-04-14
出版日期:
2022-10-20
发布日期:
2022-10-27
通讯作者:
shangqinghua@ivpp.ac.cn基金资助:
SHANG Qing-Hua(), LI Chun, WANG Wei
Received:
2022-04-14
Published:
2022-10-20
Online:
2022-10-27
摘要:
根据产自云南罗平中三叠统关岭组II段的一件海生爬行动物骨架,建立和描述了始鳍龙类幻龙科幻龙属的一个新种——罗平幻龙(Nothosaurus luopingensis sp. nov.)。该骨架包括完整的与上下颌紧密咬合的头骨和不太完整的头后骨骼,头后部分包括全部的颈椎、大部分背椎,前两个尾椎以及大部分的肩带、腰带骨骼以及四肢骨骼。新标本具有长而扁的头骨,颞孔较大,顶孔相对靠后,上颌骨发育獠齿型齿,上枕骨封闭并呈水平展布,这些特征指示该骨架属于鳍龙类的幻龙类。而头骨上颌齿列的后伸超过上颞孔前缘的水平位置,上颞孔的长度是眼眶长的两倍多等特征指示它具有更多的幻龙属(Nothosaurus)近裔共性。与欧龙属(Lariosaurus)相对比,新标本的肩带和四肢结构也具有幻龙属特征,如:锁骨前外侧角显著扩张,弯曲的肱骨前缘具有平直的轴前角,肱骨有明显的三角胸嵴,手部不具有多指节现象,脊椎无肿骨现象等。另一方面,该骨架的头后骨骼也显示一些之前曾主要发现于欧龙属的头后骨骼特征,如:骨化的腕骨数目超过3枚,具四节或更多的荐椎,间锁骨后缘平直、不发育后突。这些头后骨骼特征已经不能再用来区别欧龙属和幻龙属。罗平幻龙以下面这些衍生特征与其他幻龙属种区别,包括:轭骨前部进入眼眶,两鼻骨分离,额骨后端分叉,第IV、V趾长且长度相等,爪趾骨显著膨大。系统发育分析支持新种属于Nothosaurus, 它和羊圈幻龙(N. yangjuanensis)互为姊妹群,同时Nothosaurus是单系类群。
中图分类号:
尚庆华, 李淳, 王维. 云南罗平中三叠世安尼期鳍龙类Nothosaurus一新种. 古脊椎动物学报, 2022, 60(4): 249-270.
SHANG Qing-Hua, LI Chun, WANG Wei. Nothosaurus luopingensis sp. nov. (Sauropterygia) from the Anisian, Middle Triassic of Luoping, Yunnan Province, China. Vertebrata Palasiatica, 2022, 60(4): 249-270.

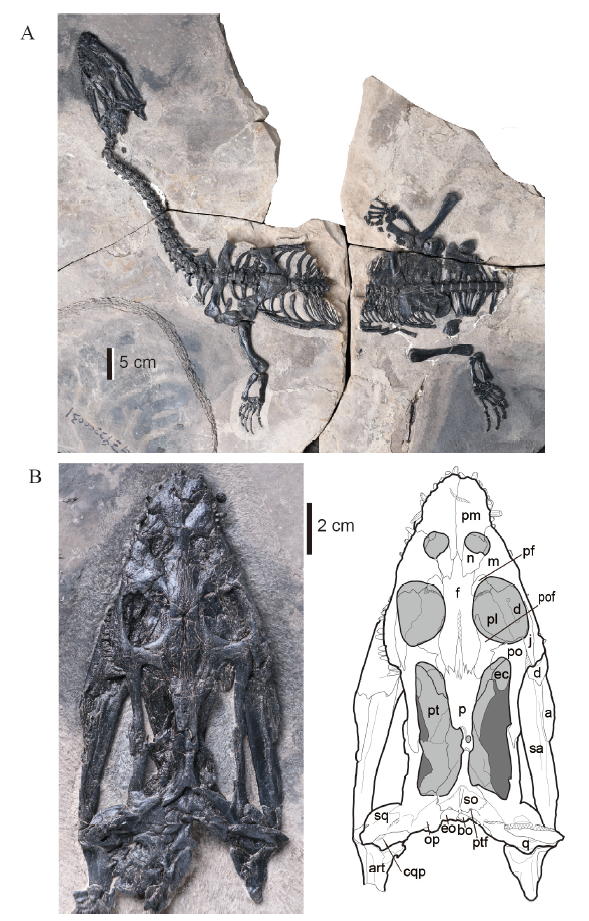

Fig. 1 Photograph of the holotype of Nothosaurus luopingensis sp. nov. (IVPP V 24895) (A), and photograph and line drawing of the skull in dorsal view (B) Zigzag lines indicate a broken surface Abbreviations: a. angular; art. articular; bo. basioccipital; cqp. cranio-quadrate passage; d. dentary;ec. ectopterygoid; eo. exoccipital; f. frontal; j. jugal; m. maxilla; n. nasal; op. opisthotic; p. parietal;pf. prefrontal; pl. palatine; pm. premaxilla; po. postorbital; pof. postfrontal; pt. pterygoid;ptf. post temporal fenestra; q. quadrate; sa. surangular; so. supraoccipital; sq. squamosal

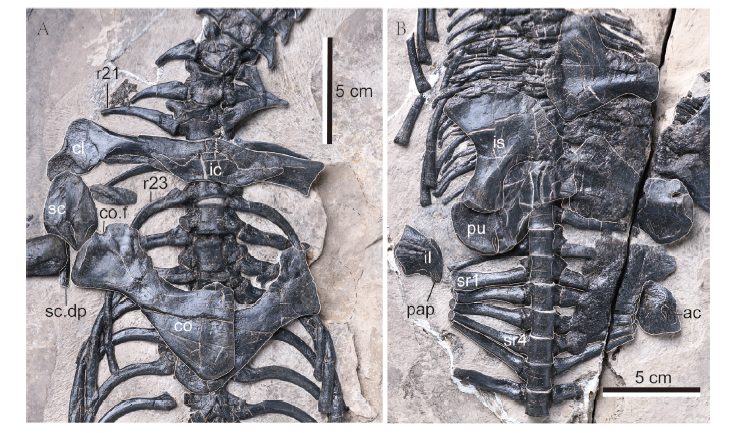

Fig. 2 Nothosaurus luopingensis sp. nov. (IVPP V 24895), pectoral girdles with posterior cervical and anterior dorsal vertebrae (A) and pelvic girdle with sacral and two preserved causal vertebrae (B) in ventral views Abbreviations: ac. acetabular facet; cl. clavicle; co. coracoid; co.f. coracoid foramen; ic. interclavicle; il. ilium; is. ischium; pap. postacetabular process; pu. pubis; r21, 23. rib 21st, 23rd; sc. scapula; sc.dp. scapular dorso-caudal process; sr1, 4. sacral rib 1, 4

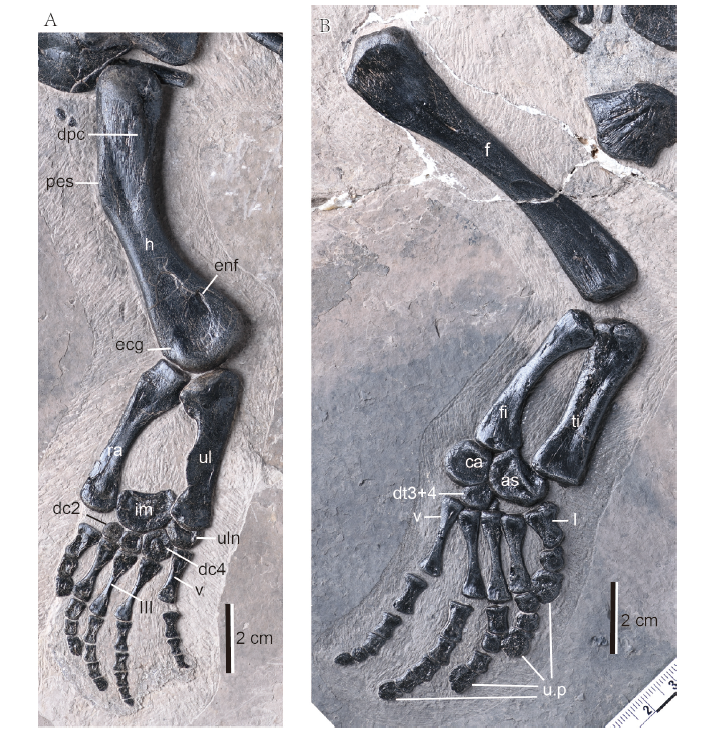

Fig. 3 Limbs of Nothosaurus luopingensis sp. nov. (IVPP V 24895) A. the right forelimb in ventral view; B. the right hindlimb in dorsal view Abbreviations: as. astragalus; ca. calcaneum; dc2, 4. distal capal 2, 4; dpc. deltopectoral crest;dt3+4. distal tarsal 3+4; ecg. ectepicondylar groove; enf. entepicondylar foramen; f. femur; fi. fibula;h. huerus; im. intermedium; pes. preaxial edge of the shaft; ra. radius; ti. tibia; ul. ulna; uln. ulnare;u.p. ungula phalange; I to V. metacarpals or metatarsals I to V

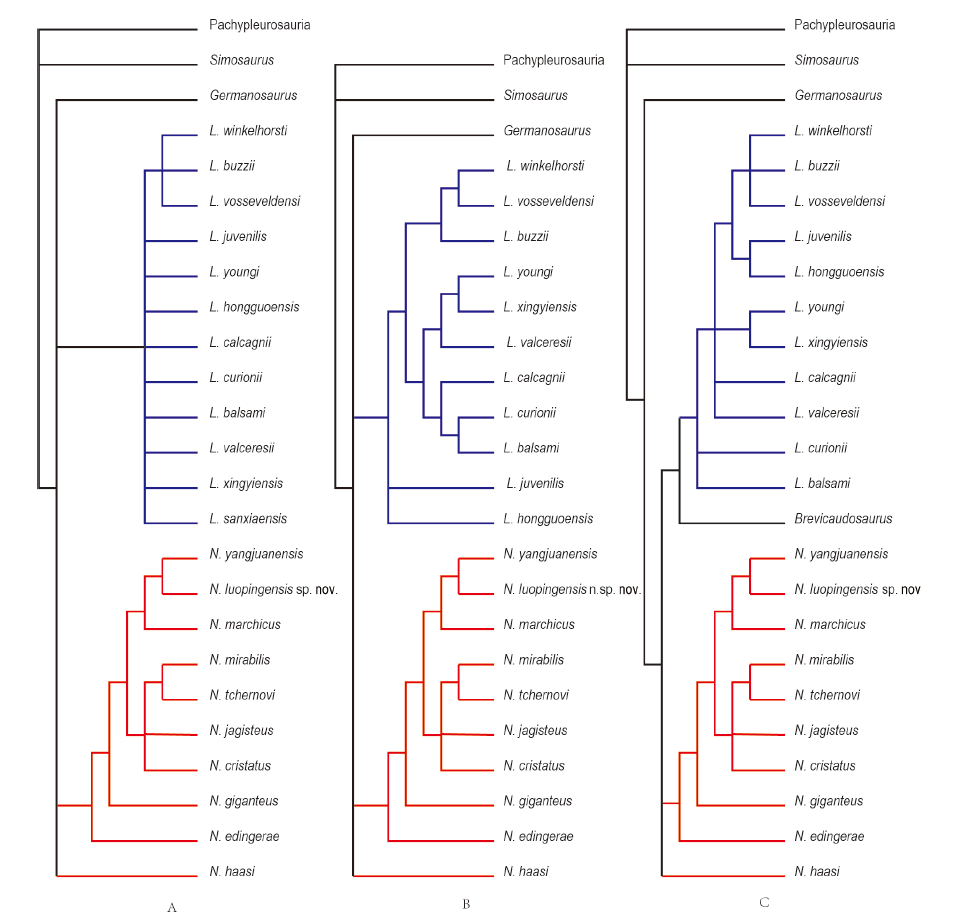

Fig. 4 Strict consensus trees based on the three analyses of the study depicting the phylogenetic relationships within the Nothosauridae A. result of the analysis including Lariosaurus sanxiaensis, tree length = 267, consistency index (CI) = 0.3221, retention index (RI) = 0.3987; B. result of the second analysis excluding L. sanxiaensis, Tree length = 230, CI = 0.3652, RI = 0.5084; C. result of the analysis excluding L. sanxiaensis, but including Brevicaudosaurus, Tree length = 242, CI = 0.3471, RI = 0.4920
[1] | Albers P C H, 2011. New Nothosaurus skulls from the Lower Muschelkalk of the western Lower Saxony Basin (Winterswijk, the Netherlands) shed new light on the status of Nothosaurus winterswijkensis. Neth J Geosci, 90 (1): 15-21 |
[2] |
Albers P C H, Rieppel O, 2003. A new species of the sauropterygian genus Nothosaurus from the Lower Muschelkalk of Winterswijk, the Netherlands. J Paleont, 77: 738-744
DOI URL |
[3] |
Benton M J, Zhang Q Y, Hu S X et al., 2014. Reprint of “Exceptional vertebrate biotas from the Permo-Triassic mass extinction”. Earth-Sci Rev, 137: 85-128
DOI URL |
[4] |
Bickelmann C, Sander P M, 2008. A partial skeleton and isolated humeri of Nothosaurus (Reptilia: Eosauropterygia) from Winterswijk, the Netherlands. J Vert Paleont, 28: 326-338
DOI URL |
[5] |
Cheng Y N, Wu X C, Sato T et al., 2012. A new eosauropterygian (Diapsida, Sauropterygia) from the Triassic of China. J Vert Paleont, 32: 1335-1349
DOI URL |
[6] | Cheng Y N, Wu X C, Sato T et al., 2016. Dawazisaurus brevis, a new eosauropterygian from the Middle Triassic of Yunnan, China. Acta Geol Sin-Engl, 90(2): 401-424 |
[7] | Edinger T, 1921. Über Nothosaurus. Ph. D thesis. Frankfurt a. M: Johann-Wolfgang-Goethe University. 1-74 |
[8] | Haas G, 1980. Ein Nothosaurier-Schädel aus dem Muschelkalk des Wadi Ramon (Negev, Israel). Ann Naturhist Mus Wien, 83: 119-125 |
[9] |
Hinz J K, Matzke A T, Pfretzschner H U, 2019. A new nothosaur (Sauropterygia) from the Ladinian of Vellberg-Eschenau, southern Germany. J Vert Paleont, 39: 2, e1585364, doi: 10.1080/02724634.2019.1585364
DOI |
[10] | Jiang D Y, Maisch M W, Hao W C et al., 2006a. Nothosaurus yangjuanensis n. sp. (Reptilia, Sauropterygia, Nothosauridae) from the middle Anisian (Middle Triassic) of Guizhou, southwestern China. Neue Jahrb Geol Paläont, Monatsh, 2006: 257-276 |
[11] | Jiang D Y, Maisch M W, Sun Z Y et al., 2006b. A new species of Lariosaurus (Reptilia, Sauropterygia) from the middle Anisian (Middle Triassic) of Guizhou, southwestern China. Neue Jahrb Geol Paläont Abh, 242: 19-42 |
[12] |
Jiang D Y, Lin W B, Rieppel O et al., 2019. A new Anisian (Middle Triassic) eosauropterygian (Reptilia, Sauropterygia) from Panzhou, Guizhou Province, China. J Vert Paleont, 38: 1-9, doi: 10.1080/02724634.2018.1480113
DOI |
[13] |
Klein N, Albers P C H, 2009. A new species of the sauropsid reptile Nothosaurus from the Lower Muschelkalk of the western Germanic Basin, Winterswijk, the Netherlands. Acta Palaeontol Pol, 54: 589-598
DOI URL |
[14] |
Klein N, Voeten D F A E, Lankamp J et al., 2015. Postcranial material of Nothosaurus marchicus from the Lower Muschelkalk (Anisian) of Winterswijk, the Netherlands, with remarks on swimming styles and taphonomy. Paläontol Z, 89: 961-981, doi: 10.1007/s12542-015-0273-5
DOI URL |
[15] |
Klein N, Voeten D F A E, Haarhuis A et al., 2016. The earliest record of the genus Lariosaurus from the early middle Anisian (Middle Triassic) of the Germanic Basin. J Vert Paleont, 36: 4, e1163712, doi: 10.1080/02724634.2016.1163712
DOI |
[16] | Koken E, 1893. Beiträge zur Kenntnis der Gattung Nothosaurus. Z Deut Geol Gesell, 45: 338-377 |
[17] | Li J L, Rieppel O, 2004. A new nothosaur from the Middle Triassic of Guizhou, China. Vert PalAsiat, 42: 1-12 |
[18] | Li J L, Liu J, Rieppel O, 2002. A new species of Lariosaurus (Sauropterygia: Nothosauridae) from Triassic of Guizhou, Southwest China. Vert PalAsiat, 40: 114-126 |
[19] |
Li Q, Liu J, 2020. An Early Triassic sauropterygian and associated fauna from South China provide insights into Triassic ecosystem health. Commun Biol, 3: 63
DOI PMID |
[20] |
Lin W B, Jiang D Y, Rieppel O et al., 2017. A new specimen of Lariosaurus xingyiensis (Reptilia, Sauropterygia) from the Ladinian (Middle Triassic) Zhuganpo Member, Falang Formation, Guizhou, China. J Vert Paleont, doi: 10.1080/02724634.2017.1278703
DOI |
[21] | Liu J, Rieppel O, Jiang D Y et al., 2011. A new pachypleurosaur (Reptilia: Sauropterygia) from the lower Middle Triassic of southwestern China and the phylogenetic relationships of Chinese pachypleurosaurs. J Vert Paleont, 31: 291-302 |
[22] |
Liu J, Hu S X, Rieppel O et al., 2014. A gigantic nothosaur (Reptilia: Sauropterygia) from the Middle Triassic of SW China and its implication for the Triassic biotic recovery. Sci Rep, 4: 7142, doi: 10.1038/srep07142
DOI PMID |
[23] | Mazin J M, 1985. A specimen of Lariosaurus balsami Curioni 1847, from the eastern Pyrenees (France). Palaeontogr Abt A, 189: 159-169 |
[24] | Münster G V, 1834. Vorläufige Nachricht über einige neue Reptilien im Muschelkalke von Baiern. Neues Jahrb Mineral Geog Geol Petr Kunde, 1834: 521-527 |
[25] | Peyer B, 1931. Die Triasfauna der Tessiner Kalkalpen. IV. Ceresiosaurus calcagnii nov. gen. nov. spec. Abh Schweiz Paläont Gesell, 51: 1-68 |
[26] | Peyer B, 1939. Die Triasfauna der Tessiner Kalkalpen, XIV. Paranothosaurus amsleri nov. gen. nov. spec. Abh Schweiz Paläont Gesell, 62, 1-87 |
[27] | Rieppel O, 1994. The status of the Sauropterygian reptile Nothosaurus juvenilis from the Middle Triassic of Germany. Plalaeontology, 37(4): 733-745 |
[28] | Rieppel O, 1998. The status of the Sauropterygian reptile genera Ceresiosaurus, Lariosaurus, and Silvestrosaurus from the Middle Triassic of Europe. Fieldiana (Geol), New Ser, 38: 1-46 |
[29] | Rieppel O, 2000. Sauropterygia I. In: Wellnbofer P ed. Handbuch der Palaoherpetologie, Vol 12A. Műnchen: Verlag Dr. Friedrich Pfeil. 1-134 |
[30] |
Rieppel O, 2001. A new species of Nothosaurus (Reptilia: Sauropterygia) from the Upper Muschelkalk (lower Ladinian) of southwestern Germany. Palaeontogr Abt A, 263: 137-161
DOI URL |
[31] | Rieppel O, Wild R, 1994. Nothosaurus edingerae schultze, 1970: diagnosis of the species and comments on its stratigrahpical occurrence. Stuttg Beitr Naturk, Ser B, 204: 1-13 |
[32] | Rieppel O, Wild R, 1996. A revision of the genus Nothosaurus (Reptilia: Sauropterygia) from the Germanic Triassic, with comments on the status of Conchiosaurus clavatus. Fieldiana (Geol), New Ser, 34: 1-82 |
[33] | Rieppel O, Mazin J M, Tchernov E, 1997. Speciation along rifting continental margins: a new nothosaur from the Negev (Israel). C R Acad Sci Ser II A, 325: 991-997 |
[34] | Rieppel O, Mazin J M, Tchernov E, 1999. Sauropterygia from the Middle Triassic of Makhtesh Ramon, Negev, Israel. Fieldiana (Geol), New Ser, 40: 1-85 |
[35] | Romer A S, 1976. Osteology of the Reptiles. Chicago & London: The University of Chicago Press. 1-772 |
[36] | Schröeder H, 1914. Wirbeltiere der Rűdersdorfer Trias. Abh K Preuss Geol Landesanst, N F, 65: 1-98 |
[37] | Schultze H P, 1970. Über Nothosaurus. Neubeschreibung eines Schädels aus dem Keuper. Senckenbergiana Lethaea, 51: 211-237 |
[38] | Shang Q H, 2006. A new species of Nothosaurus from the early Middle Triassic of Guizhou, China. Vert PalAsiat, 44: 238-249 |
[39] | Shang Q H, Li C, 2015. A new small-sized eosauropterygian (Diapsida: Sauropterygia) from the Middle Triassic of Luoping, Yunnan, southwestern China. Vert PalAsiat, 53: 265-280 |
[40] | Shang Q H, Wu X C, Li C, 2011. A new eosauropterygian from the Middle Triassic of eastern Yunnan Province, southwestern China. Vert PalAsiat, 49: 155-173 |
[41] | Shang Q H, Li C, Wu X C, 2017. New information on Dianmeisaurus gracilis Shang & Li, 2015. Vert PalAsiat, 55: 145-161 |
[42] |
Shang Q H, Wu X C, Li C, 2020. A new Ladinian nothosauroid (Sauropterygia) from Fuyuan, Yunnan Province, China. J Vert Paleont, doi: 10.1080/02724634.2020.1789651
DOI |
[43] | Swofford D L, 2002. PAUP*: Phylogenetic Analysis Using Parsimony (*and Other Methods), version 4. Sunderland, Massachusetts: Sinauer Associates |
[44] | Swofford D L, 2021. PAUP*: Phylogenetic Analysis Using Parsimony, version 4.0a169. Sunderland, Massachusetts: Sinauer Associates |
[45] | Tschanz K, 1989. Lariosaurus buzzii n. sp. from the Middle Triassic of Monte San Giorgio (Switzerland), with comments on the classification of nothosaurs. Palaeontogr Abt A, 208: 153-179 |
[46] |
Yin C, Hao W C, Sun Z Y et al., 2014. New material of Nothosaurus yangjuanensis from the middle Anisian (Middle Triassic) of Guizhou, southwestern China. Acta Sci Natu Univ Pek, doi: 10.13209/j.0479-8023.2014.050
DOI |
[47] |
Zhang Q Y, Zhou C Y, Lü T et al., 2009. A conodont-based Middle Triassic age assignment for the Luoping biota of Yunnan, China. Sci China Ser D-Earth Sci, 52(10): 1673-1678
DOI URL |
