古脊椎动物学报 ›› 2023, Vol. 61 ›› Issue (1): 1-16.DOI: 10.19615/j.cnki.2096-9899.221013CSTR: 32090.14.j.cnki.2096-9899.221013
• • 下一篇
房庚雨1,2, 孙元林3, 季承4,5, 吴飞翔1,6,*()
收稿日期:
2022-07-09
出版日期:
2023-01-20
发布日期:
2023-01-11
基金资助:
FANG Geng-Yu1,2, SUN Yuan-Lin3, JI Cheng4,5, WU Fei-Xiang1,6,*()
Received:
2022-07-09
Published:
2023-01-20
Online:
2023-01-11
Contact:
* wufeixiang@ivpp.ac.cn摘要:
龙鱼类具尖吻和流线型的细长体型,是中生代早期海洋鱼群中的顶级捕食者。经历晚二叠世生物大绝灭(EPME)后,龙鱼类在全球范围内快速辐射,并于中三叠世时期在形态特征及适应策略上发展出可观的多样性。先前的化石记录显示,曾经全球广布的龙鱼类似乎自晚三叠世开始收缩至西特提斯洋。当时海生脊椎动物多样性的热点——东特提斯洋区中国华南晚三叠世海相地层中迄今尚无龙鱼类的记录,与此呈鲜明对照的是,该地区更低层位(如中三叠世盘县-罗平生物群和兴义生物群)的数个化石库(Lagerstätten)却保存有高度多样化的龙鱼类化石。报道了产自中国西南地区(黔西南和滇东地区)晚三叠世早期的关岭生物群的龙鱼属(Saurichthys)一新种——饕餮龙鱼(Saurichthys taotie sp. nov.)。饕餮龙鱼体型中等,其主要特征有:下鳃盖骨(subopercle)近三角形且外侧具密集纵纹,颅顶后部纹饰较弱,吻部前端背缘发育显著的纵嵴。作为龙鱼类在晚三叠世东特提斯洋区的首次记录,饕餮龙鱼的发现说明当时这一类群的多样性虽然在全球范围内呈现显著的下降,但它们的地理分布实际上比先前的认识广阔得多。此外,饕餮龙鱼保留了一些此前仅见于早三叠世同类的特征,为认识龙鱼类的演化和生物地理学历史带来新的思考。
中图分类号:
房庚雨, 孙元林, 季承, 吴飞翔. 晚三叠世东特提斯洋龙鱼属(Saurichthys) (Actinopterygii: Saurichthyidae)的首次记录. 古脊椎动物学报, 2023, 61(1): 1-16.
FANG Geng-Yu, SUN Yuan-Lin, JI Cheng, WU Fei-Xiang. First record of Saurichthys (Actinopterygii: Saurichthyidae) from the Late Triassic of eastern Paleo-Tethys. Vertebrata Palasiatica, 2023, 61(1): 1-16.

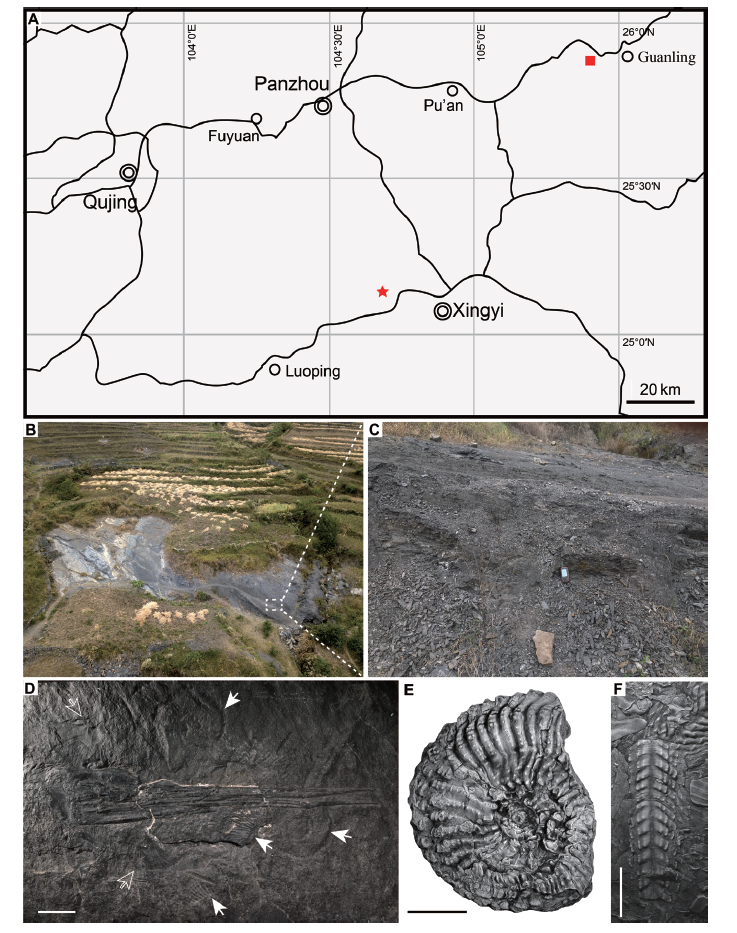

Fig. 1 Geographic sketch map of the studied fossil localities; photographs of the Longbozi Outcrop, and coexisting fossils A. sketched location map, red pentagram: Longbozi outcrop (Longbozi Village), Fuyun County, Qujing City, Yunnan Province; red square: Xinpu Town, Guizhou Province; B, C. aerial photo (B) and fossiliferous layers (C) of the Longbozi outcrop, GPS in the center of the image is 15 cm long; D-F. photographs of co-occurring fossils from the Longbozi outcrop: D. IVPP V31228, hollow arrows indicate bivalves (Halobia sp.), and white arrows indicate Trachyceras sp., scale bar = 20 mm; E, F. Trachyceras multituberculatum collected from Longbozi outgroup, in lateral (E) and ventral (F) views, scale bars = 5 mm

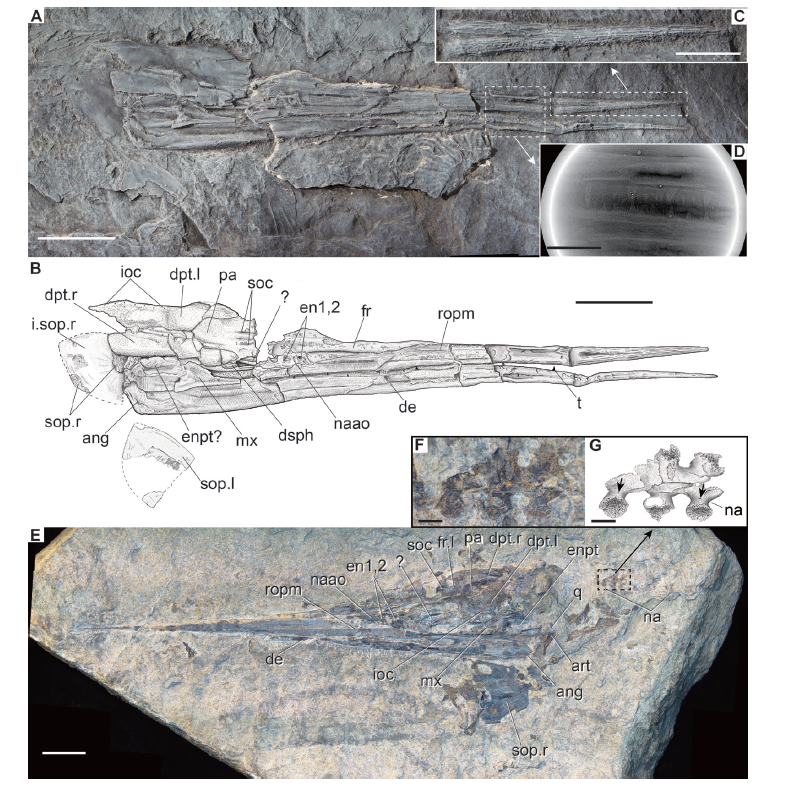

Fig. 3 Saurichthys taotie sp. nov. from the Guanling biota (Late Triassic), eastern Paleo-Tethys A, B. photograph (A) and line drawing (B) of the holotype IVPP V31228; C. the close-up of the anterior length of the rostrum in A; D. the CL image of a length of the rostrum and the teeth covered by the matrix in A;E. photograph of the paratype IVPP V31229; F, G. close-up image (F) and line drawing (G) of the neural arches preserved in E, black arrows point the foramina in the inner side of the neural arches, which are possibly associated with the spinal nerves or vessels (Wu et al., 2009; 2011; 2015) Scale bars equal 20 mm in A, B and E, 5 mm in C and D, and 2 mm in F and G Anatomical abbreviations: ang. angular; art. articular; de. dentary; dpt.l. left dermopterotic; dpt.r. right dermopterotic; dsph. dermosphenotic; en1,2. anterior and posterior external nares; enpt. entopterygoid;fr.l. left frontal; ioc. infraorbital sensory canal; i.sop.r. the imprint of the right subopercle; mx. maxilla;na. neural arch; naao. nasaloantorbital; pa. parietal; q. quadrate; ropm. rostropremaxilla; soc. supraorbital sensory canal; sop.l. left subopercle; sop.r. right subopercle; t. a tooth; ?. unidentified structure
IVPP V31228 | IVPP V31229 | ||
---|---|---|---|

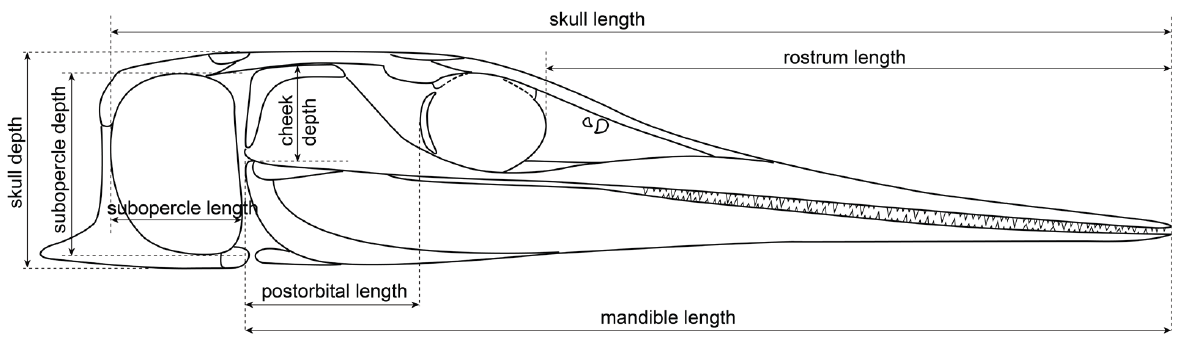

Measurement (mm) | Skull length (Lsk) | 181.5 | ~247.7 |
Mandible length (Lmand) | 163.0 | 220.4 | |
Skull depth (Dsk) | ~24 | ~35 | |
Rostrum length (Lro) | ~124 | ~157.5 | |
Postorbital length (Lpo) | ~26 | ~37 | |
Cheek depth (Dch) | ~12 | ~18 | |
Subopercle length (Lsop) | 18.5 | ~27 | |
Subopercle depth (Dsop) | 19.1 | ~29 | |
Proportion (%) | Lro/Lmand | 76.1 | 71.5 |
Lpo/Lmand | 15.95 | 16.8 | |
Lpo/Lro | 21.0 | 23.5 | |
Dsk/Lsk | 13.2 | 14.1 | |
Dch/Lpo | 46.1 | 48.6 | |
Lsop/Dsop | 96.9 | 93.1 |
Table 1 Meristic characters of Saurichthys taotie sp. nov.
IVPP V31228 | IVPP V31229 | ||
---|---|---|---|
Measurement (mm) | Skull length (Lsk) | 181.5 | ~247.7 |
Mandible length (Lmand) | 163.0 | 220.4 | |
Skull depth (Dsk) | ~24 | ~35 | |
Rostrum length (Lro) | ~124 | ~157.5 | |
Postorbital length (Lpo) | ~26 | ~37 | |
Cheek depth (Dch) | ~12 | ~18 | |
Subopercle length (Lsop) | 18.5 | ~27 | |
Subopercle depth (Dsop) | 19.1 | ~29 | |
Proportion (%) | Lro/Lmand | 76.1 | 71.5 |
Lpo/Lmand | 15.95 | 16.8 | |
Lpo/Lro | 21.0 | 23.5 | |
Dsk/Lsk | 13.2 | 14.1 | |
Dch/Lpo | 46.1 | 48.6 | |
Lsop/Dsop | 96.9 | 93.1 |

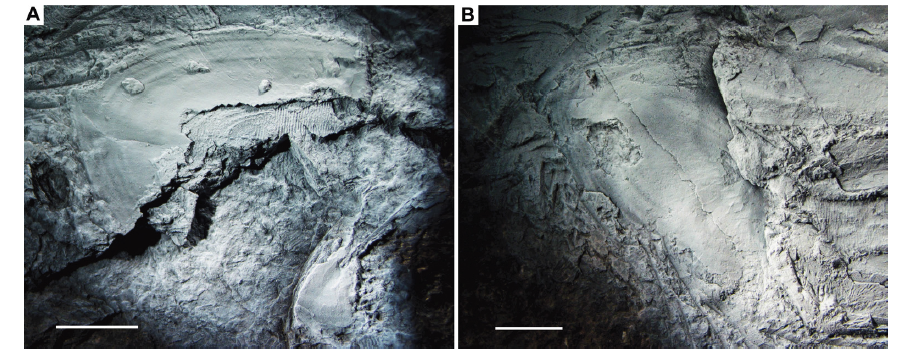

Fig. 4 Photographs of the subopercles of Saurichthys taotie sp. nov. (IVPP V31228) from the Guanling biota (Late Triassic), eastern Paleo-Tethys A. left subopercle; B. imprint and remaining parts of the right subopercle. Scale bars = 5 mm

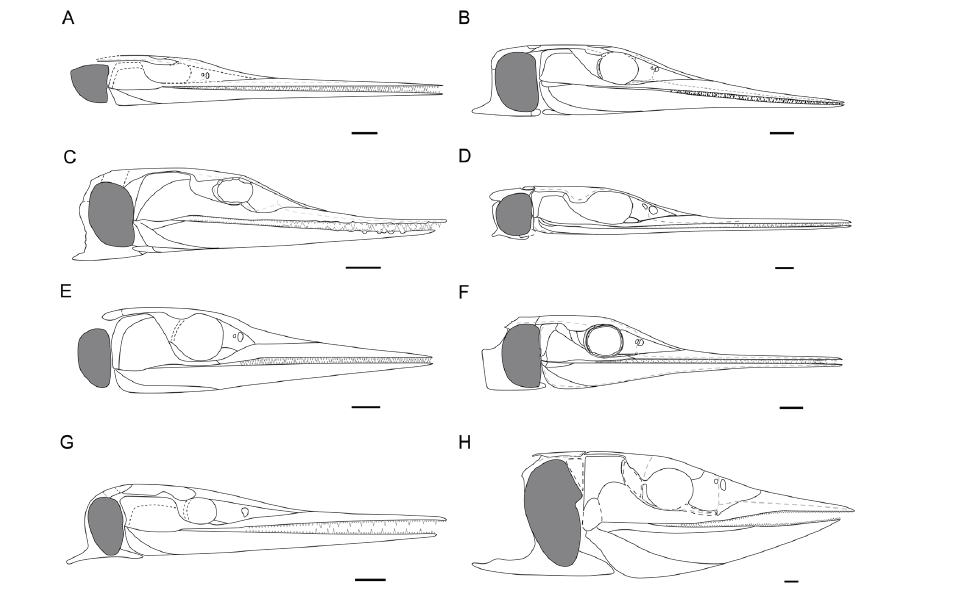

Fig. 5 Comparison of the skulls of some known saurichthyiform fishes from the Middle to Late Triassic of Yunnan and Guizhou, China A. Saurichthys taotie sp. nov.; B. S. dawaziensis (Wu et al., 2009); C. S. yangjuanensis (Wu et al., 2015); D. S. spinosa (Wu et al., 2018); E. S. yunnanensis (Zhang et al., 2010); F. Sinosaurichthys longipectoralis (Wu et al., 2011); G. Saurichthys sp. from the Ladinian Xingyi biota, southwestern Guizhou Province (personal observations); H. Yelangichthys macrocephalus (Wu et al., 2013) Gray shadows highlight the subopercles. Scale bars equal 2 mm in D and 10 mm in other illustrations

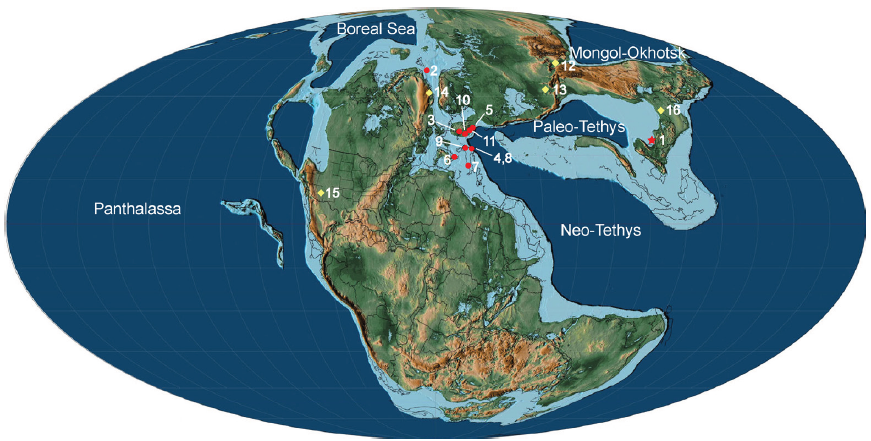

Fig. 6 Paleogeographical distribution of Saurichthys in the Late Triassic Paleogeographic map adopted from Scotese (2014), records of Saurichthys mostly adopted from Romano et al. (2012) with minor modification Fossil records from the marine deposits (red dots): 1. Saurichthys taotie sp. nov., Guizhou and Yunnan provinces, China; 2. Saurichthys? sp., Svalbard, Norway; 3. S. irregularis, Württemberg, Germany; 4. S. striolatus (Carnian), Friuli-Venezia Giulia, Italy; 5. S. calcaratus, Lower Austria, Austria; 6. Saurichthys sp., Catalonia, Spain; 7. S. deperditus, Campania, Italy; 8. Saurichthys sp. (Norian), Friuli-Venezia Giulia, Italy; 9. S. deperditus, S. seefeldensis, Saurichthys sp., Lombardy, Italy; 10. S. seefeldensis, Tryol, Austria; 11. S. deperditus (= S. “krambergeri”), Upper Austria, Austria; Fossil records from freshwater deposits (yellow diamond): 12. Saurichthys sp., Junggar Basin, Xinjiang, China (Liu and Wei, 1988); 13. S. orientalis, Madygen Formation, Southwestern Kyrgyzstan (Kogan et al., 2009); 14. Saurichthys? sp., Greenland (Jenkins et al., 1994); 15. Saurichthys sp., Arizona, USA (Kligman et al., 2017); 16. S. huanshenensis (with questionable age), Shaanxi, China (Chou and Liu, 1957)
[1] | Agassiz L, 1834. Abgerissene Bemerkungen über fossile Fische. Neues Jahrb Min Geogn Geol Petr, 1834: 379-390 |
[2] | Aldinger H, 1937. Permische Ganoidfische aus Ostgrönland. Medd Grønl, 102(3): 1-392 |
[3] | Argyriou T, Giles S, Friedman M et al., 2018. Internal cranial anatomy of Early Triassic species of †Saurichthys (Actinopterygii: †Saurichthyiformes): implications for the phylogenetic placement of † saurichthyiforms. BMC Evol Biol, 18(1): 161 |
[4] | Benton M J, Wu F X, 2022. Triassic revolution. Front Earth Sci, https://doi.org/10.3389/feart.2022.899541 |
[5] | Benton M J, Zhang Q Y, Hu S X et al., 2013. Exceptional vertebrate biotas from the Triassic of China, and the expansion of marine ecosystems after the Permo-Triassic mass extinction. Earth Sci Rev, 125: 199-243 |
[6] | Chang M M, Miao D S, Arratia G et al., 2012. An overview of Mesozoic fishes in Asia. In: Arratia G, Tintori A eds. Mesozoic Fish 3: Systematics, Paleoenvironments and Biodiversity. München: Dr. Friedrich Pfeil. 535-563 |
[7] | Chen Z Q, Benton M J, 2012. The timing and pattern of biotic recovery following the end-Permian mass extinction. Nat Geosci, 5(6): 375-383 |
[8] | Chou H H, Liu H T, 1957. Fossil fishes from Huanshan, Shensi. Acta Palaeontol Sin, 5(2): 295-305 |
[9] | Cope E D, 1887. Geology and Palaeontology. Am Nat, 21: 1014-1019 |
[10] | Ge Y H, Sun C L, Liu M X, 2007. Stratigraphic division and correlation of the Yan’an Formation in the northeastern margin of the Ordos Basin, China. J Stratigr, 31(2): 151-156 |
[11] | Griffith J, 1959. On the anatomy of two saurichthyid fishes, Saurichthys striolatus (Bronn) and S. curioni (Bellotti). Proc Zool Soc London, 132(4): 587-606 |
[12] | Griffith J, 1962. The Triassic fish Saurichthys krambergeri Schlosser. Palaeontology, 5(11): 342-352 |
[13] | Griffith J, 1977. The upper triassic fishes from polzberg bei Lunz, Austria. Zool J Linn Soc, 60(1): 1-93 |
[14] | Jiang D Y, Motani R, Hao W C et al., 2009. Biodiversity and sequence of the Middle Triassic Panxian marine reptile fauna, Guizhou Province, China. Acta Geol Sin, 83: 451-459 |
[15] | Jin F, 2006. An overview of Triassic fishes from China. Vert PalAsiat, 44: 28-42 |
[16] | Kligman B T, Parker W G, Marsh A D, 2017. First record of Saurichthys (Actinopterygii) from the Upper Triassic (Chinle Formation, Norian) of western North America. J Vert Paleont, 37(5): e1367304 |
[17] | Kogan I, Romano C, 2016. Redescription of Saurichthys madagascariensis Piveteau, 1945 (Actinopterygii, Early Triassic), with implications for the early saurichthyid morphotype. J Vert Paleont, 36(4): e1151886 |
[18] | Kogan I, Schönberger K, Fischer J et al., 2009. A nearly complete skeleton of Saurichthys orientalis (Pisces, Actinopterygii) from the Madygen Formation (Middle to Late Triassic, Kyrgyzstan, Central Asia) - preliminary results. Paläontol Stratigr Faz 17, FreibForsch C, 532: 139-152 |
[19] |
Kogan I, Pacholak S, Licht M et al., 2015. The invisible fish: hydrodynamic constraints for predator-prey interaction in fossil fish Saurichthys compared to recent actinopterygians. Biol Open, 4(12): 1715-1726
DOI PMID |
[20] | Kogan I, Tintori A, Licht M, 2020. Locomotor function of scales and axial skeleton in middle-late Triassic species of Saurichthys (actinopterygii). Riv Ital Paleontol Stratigr, 126(2): 475-498 |
[21] | Li Y, Sun Z Y, Sun Y L et al., 2013. Carnian (Late Triassic) ammonoid biostratigraphy in Luoping County, eastern Yunnan Province, China. Acta Sci Natur Univ Pek, 49(3): 471-479 |
[22] | Liu C X, 2010. Death’s End. Chongqing: Chongqing Publishing Group. 1-346 |
[23] | Liu G B, Yin G Z, Luo Y M et al., 2006. Preliminary examination of fish fossils from Upper Triassic Wayao Member of Falang Formation in Guanling of Guizhou. Acta Palaeontol Sin, 45(1): 1-20 |
[24] | Liu X T, Wei F, 1988. A new saurichthyid from the Upper Permian of Zhejiang, China. Vert PalAsiat, 26: 77-89 |
[25] | Maxwell E E, 2016. First Middle Jurassic record of Saurichthyidae (Actinopterygii). Paläontol Z, 90(2): 287-291 |
[26] | Maxwell E E, Romano C, Wu F X et al., 2015. Two new species of Saurichthys (Actinopterygii: Saurichthyidae) from the Middle Triassic of Monte San Giorgio, Switzeralnd, with implication for the phylogenetic relationships of the Genus. Zool J Linn Soc, 173(4): 887-912 |
[27] | Maxwell E E, Diependaal H, Winkelhorst H et al., 2016. A new species of Saurichthys (Actinopterygii: Saurichthyidae) from the Middle Triassic of Winterswijk, The Netherlands. Neues Jahrb Geol Paläont Abh, 280(2): 119-134 |
[28] | Mutter R J, Cartanyà J, Basaraba S A U, 2008. New evidence of Saurichthys from the Lower Triassic with an evaluation of early saurichthyid diversity. In: Arratia G, Schultze H P, Wilson M V H eds. Mesozoic Fishes 4: Homology and Phylogeny. München: Dr. Friedrich Pfeil. 103-127 |
[29] | Ren Y, Xu G H, 2021. A new species of Pteronisculus from the Middle Triassic (Anisian) of Luoping, Yunnan, China, and phylogenetic relationships of early actinopterygian fishes. Vert PalAsiat, 59: 169-199 |
[30] | Rieppel O, 1985. Die Triasfauna der Tessiner Kalkalpen, XXV. Die Gattung Saurichthys (Pisces, Actinopterygii) aus der mittleren Trias des Monte San Giorgio, Kanton Tessin. Schweiz Paläont Abh, 108: 1-103 |
[31] | Rieppel O, 1992. A new species of the genus Saurichthys (Pisces: Actinopterygii) from the Middle Triassic of Monte San Giorgio (Switzerland), with comments on the phylogenetic interrelationships of the genus. Palaeontogr Abt A, 221: 63-94 |
[32] | Romano C, Kogan I, Jenks J et al., 2012. Saurichthys and other fossil fishes from the late Smithian (Early Triassic) of Bear Lake County (Idaho, USA), with a discussion of saurichthyid palaeogeography and evolution. B Geosci, 87(3): 543-570 |
[33] | Romano C, Koot M B, Kogan I et al., 2016. Permian-Triassic Osteichthyes (bony fishes): diversity dynamics and body size evolution. Biol Rev, 91(1): 106-147 |
[34] | Scheyer T M, Schmid L, Furrer H et al., 2014. An assessment of age determination in fossil fish: the case of the opercula in the Mesozoic actinopterygian Saurichthys. Swiss J Palaeontol, 133(2): 243-257 |
[35] | Scotese C, 2014. Atlas of Permo-Triassic paleogeographic maps (Mollweide Projection). Maps 43-52, vol 3, 4 of the PALEOMAP Atlas for ArcGIS. PALEOMAP Project. Evanston, USA |
[36] | Stensiö E A, 1925. Triassic fishes from Spitzbergen 2. K Svenska VetAkad Handl Ser 3, 2(1): 1-261 |
[37] | Sun Z Y, Jiang D Y, Ji C et al., 2016. Integrated biochronology for Triassic marine vertebrate faunas of Guizhou Province, South China. J Asian Earth Sci, 118: 101-110 |
[38] | Tintori A, 2013. A new species of Saurichthys (Actinopterygii) from the Middle Triassic (early Ladinian) of the northern Grigna mountain (Lombardy, Italy). Riv Ital Paleontol Stratigr, 119: 287-302 |
[39] | Tintori A, 2019. Predators and preys: a case history for Saurichthys (Costasaurichthys) costasquamosus Rieppel, 1985 from the Ladinian of Lombardy (Italy). Riv Ital Paleont Stratigr, 125: 271-282 |
[40] |
Tong J N, Chu D L, Liang L et al., 2019. Triassic integrative stratigraphy and timescale of China. Sci China Earth Sci, 62(1): 189-222
DOI |
[41] | Wang X F, Bachmann G H, Hagdor N H et al., 2008. The Late Triassic black shales of the Guanling area, Guizhou Province, south-west China: a unique marine reptile and pelagic crinoid fossil lagerstätte. Palaeontology, 51(1): 27-61 |
[42] | Werneburg R, Kogan I, Sell J, 2014. Saurichthys (Pisces: Actinopterygii) aus dem Buntsandstein (Trias) des Germanischen Beckens. Semana, 29: 3-25 |
[43] | Wilson L A, Furrer H, Stockar R et al., 2013. A quantitative evaluation of evolutionary patterns in opercle bone shape in Saurichthys (Actinopterygii: Saurichthyidae). Palaeontology, 56(4): 901-915 |
[44] | Wu F X, Sun Y L, Hao W C et al., 2009. New species of Saurichthys (Actinopterygii: Saurichthyidae) from Middle Triassic (Anisian) of Yunnan Province, China. Acta Geol Sin-Engl, 83(3): 440-450 |
[45] | Wu F X, Sun Y L, Xu G H et al., 2011. New saurichthyid actinopterygian fishes from the Anisian (Middle Triassic) of southwestern China. Acta Palaeontol Pol, 56(3): 581-614 |
[46] | Wu F X, Chang M M, Sun Y L et al., 2013. A new saurichthyiform (Actinopterygii) with a crushing feeding mechanism from the Middle Triassic of Guizhou (China). PLoS One, 8(12): e81010 |
[47] | Wu F X, Sun Y L, Hao W C et al., 2015. A new species of Saurichthys (Actinopterygii; Saurichthyiformes) from the Middle Triassic of southwestern China, with remarks on pattern of the axial skeleton of saurichthyid fishes. Neues Jahrb Geol Paläontol A, 275(3): 249-267 |
[48] | Wu F X, Sun Y L, Fang G Y, 2018. A new species of Saurichthys from the Middle Triassic (Anisian) of southwestern China. Vert PalAsiat, 56: 273-294 |
[49] | Xu G H, Niu Z J, Chen H M, 2003. Triassic cephalopods from the Zhuganpo and Xiaowa formations in Guanling, Guizhou, with a discussion on the age of the Guanling bioa. Geol Bull China, 22(4): 254-265 |
[50] | Zhang Q Y, Zhou C Y, Lv T et al., 2010. Discovery of the Middle Triassic Saurichthys in the Luoping area, Yunnan, China. Geol Bull China, 29(1): 26-30 |
